| Brand Name : | Upick |
| Model Number : | U-ZD002 |
| Certification : | FDA |
| Price : | Negotiation |
| Payment Terms : | LC TT PAYPAL |
| Supply Ability : | 120000 PCS per Month |
| Delivery Time : | 15-20 Workdays |
Electronic grade 0.2 micron membrane pleated filter cartridge
Description
TZEP series Membrane Filter Cartridge are manufactured for the specific needs of the electronics and high purity chemical industries. Materials of construction are chosen for the compatibility with chemicals and solvents used in electronics manufacturing. The cartridges produce minimal extractable when exposed to typical process chemicals and solvents. Each cartridge module is pulse power flushed until the rinse effluent reaches 18+ Megohm-cm and less than 3ppb TOC. It is also individually tested to ensure it is integral. The cartridges shall be used when high performance filtration is essential.
Constructional Materials
| Filtering Media | Polypropylene Membrane |
| Media Support | Polypropylene |
| End Caps | Polypropylene |
| Center Core | Polypropylene |
| Support Cage | Polypropylene |
| O-Ring | Silicone, EPDM, Viton, FPM, etc. |
Dimensions
| Internal φ | 32 mm |
| External φ | 68 mm, 69 mm |
| Length | 2.5~40 inch |
| Filtration Area | >=0.6 m2 |
Service Condions
| PH Value | 1~14 |
| Working Temp. | <=55℃ |
| Max. Temp. | 80℃, △P<=0.1Mpa |
| Max. Differential | 25℃, 0.42/0.21Mpa |
Flow Rate / 10" Element with Water at 68 °F (20 °C)
Educt
Endotoxin < 0.25EU/ML
Extractive < 0.03g/10 inch filter cartridge
Applications
|
|
|
|
|
|
Features & Advantages
1, Latest and advanced PP membrane tech.
2, Reasonable core and cage design.
3, Optimum membranes compound mode.
4, Unique absolute rate PP filter cartridge.
5, Variety of end caps are optional.
6, Without any adhesive being used.
End Caps
Quality Assurance & Standards
Our goal is to ensure our customers the greatest possible value for their filtration cost. Our state of the art manufacturing facility and quality management system both meet ISO 9001:2008 standards. Each operation from assembly and test to cleaning, drying, and packaging is completed in appropriately rated clean rooms. A sophisticated MRP & ERP system collects and processes real time data from manufacturing centers and inspection points. This allows variable and attribute data to be quickly and easily analyzed driving constant improvements in both quality and cost.

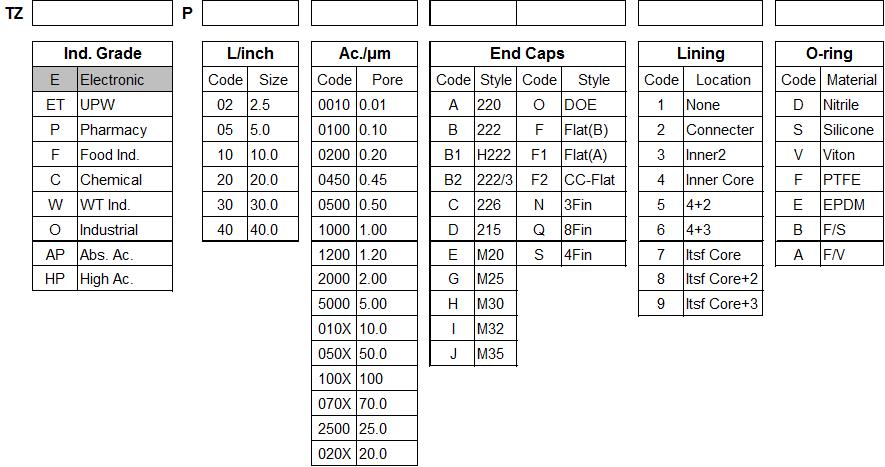

Ordering Information
Cartridge order numbers have several variables from pore size to end cap type.
For instant, Electronic Grade PP Membrane, 20 inch length, 0.20 micron rating, 226 w/fin end cap, without lining, Silicone O-rings.
Product Code =TZEP200200CN1S
|
|
