Industrial grade 0.2 micron 10 inch membrane pleated filter cartridge
Description
Industrial Grade PP Filter Cartridges are designed for general purpose use wherever a cost effective, hydrophobic, chemically inert membrane filter is required. Designed to hold the maximum amount of filter media that can be effectively utilized in a cartridge. IGM filters lower the cost of filtration. IGM cartridges are flushed with high purity water to remove potential extraneous manufacturing debris. They are often used in place of PTFE membrane because of the lower cost and low educt.
Constructional Materials
| Filtering Media | Polypropylene Membrane |
| Media Support | Polypropylene |
| End Caps | Polypropylene |
| Center Core | Polypropylene |
| Support Cage | Polypropylene |
| O-Ring | Silicone, EPDM, Viton, FPM, etc. |
Dimensions
| Internal φ | 32 mm |
| External φ | 68 mm, 69 mm |
| Length | 2.5~40 inch |
| Filtration Area | >=0.55 m2 |
Service Condions
| PH Value | 1~14 |
| Working Temp. | <=55℃ |
| Max. Temp. | 80℃, △P<=0.1Mpa |
| Max. Differential | 25℃, 0.42/0.21Mpa |

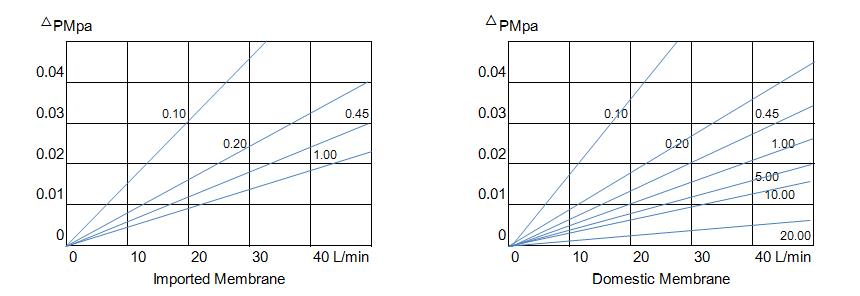

Flow Rate / 10" Element with Water at 68 °F (20 °C)
Educt
Endotoxin < 0.25EU/ML
Extractive < 0.03g/10 inch filter cartridge
Applications
|
|
|
|
|
|
Features & Advantages
1, Domestic PP membrane
2, Nontoxic and harmless
3, Optimum membranes compound mode.
End Caps
Quality Assurance & Standards
Our goal is to ensure our customers the greatest possible value for their filtration cost. Our state of the art manufacturing facility and quality management system both meet ISO 9001:2008 standards. Each operation from assembly and test to cleaning, drying, and packaging is completed in appropriately rated clean rooms. A sophisticated MRP & ERP system collects and processes real time data from manufacturing centers and inspection points. This allows variable and attribute data to be quickly and easily analyzed driving constant improvements in both quality and cost.
Ordering Information
Cartridge order numbers have several variables from pore size to end cap type.
For instant, Industrial Grade PP Membrane, 20 inch length, 0.20 micron rating, 226 w/3fin end cap, without lining, Silicone O-ring.
Product Code =TZOP200200CN1S
|
|
