Absolute accuracy APP 0.45 micron membrane pleated filter cartridge
Description
TZAPP series Membrane Filter Cartridge are manufactured for the specific needs in many high demand industry. it is the only type of absolute rate filter cartridge made from ultra-fine nano-fiber PP membrane from abroad. Each cartridge module is individually integrity tested, intensity tested before it is released from manufacture. The cartridge surface area, filter core design, pleat configuration, and pleat packing density have been optimized to provide increased cartridge life resulting in lower filtration operating costs. Stable construction ensures repeatable steaming and testing.
Constructional Materials
| Filtering Media | Nano-Fiber Polypropylene |
| Media Support | Polypropylene |
| End Caps | Polypropylene |
| Center Core | Polypropylene |
| Support Cage | Polypropylene |
| O-Ring | Silicone, EPDM, Viton, FPM, etc. |
Dimensions
| Internal φ | 32 mm |
| External φ | 68 mm, 69 mm |
| Length | 2.5~40 inch |
| Filtration Area | >=0.6 m2 |
Service Condions
| PH Value | 1~14 |
| Working Temp. | <=55℃ |
| Max. Temp. | 80℃, △P<=0.1Mpa |
| Max. Differential | 25℃, 0.42/0.21Mpa |
Flow Rate / 10" Element with Water at 68 °F (20 °C)
Educt
Endotoxin < 0.25EU/ML
Extractive < 0.03g/10 inch filter cartridge
Applications
|
|
|
|
|
|
Features & Advantages
1, Latest and advanced PP membrane tech.
2, Reasonable core and cage design.
3, Optimum membranes compound mode.
4, Unique absolute rate PP filter cartridge.
5, Variety of end caps are optional.
6, Without any adhesive being used.

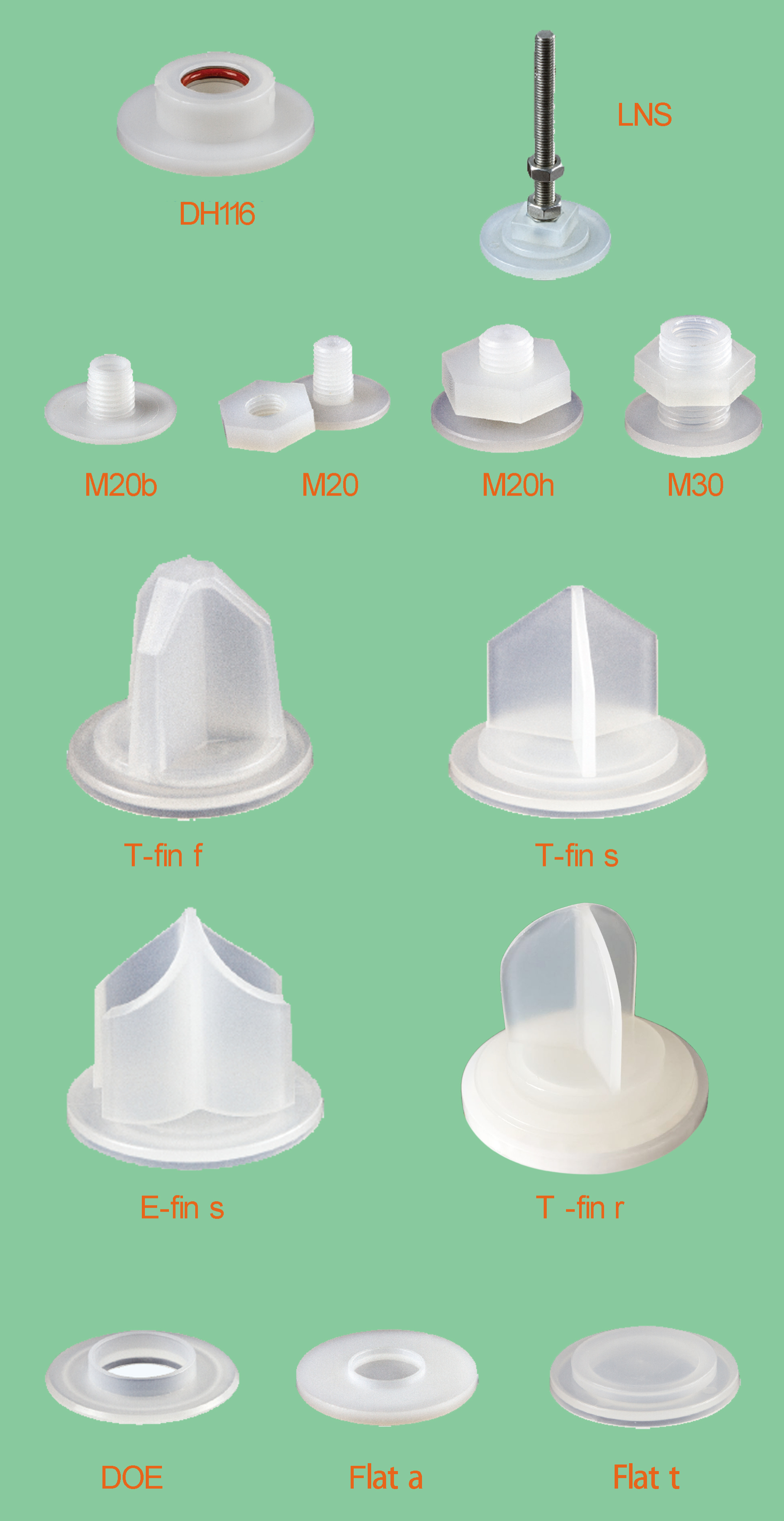

End Caps
Quality Assurance & Standards
Our goal is to ensure our customers the greatest possible value for their filtration cost. Our state of the art manufacturing facility and quality management system both meet ISO 9001:2008 standards. Each operation from assembly and test to cleaning, drying, and packaging is completed in appropriately rated clean rooms. A sophisticated MRP & ERP system collects and processes real time data from manufacturing centers and inspection points. This allows variable and attribute data to be quickly and easily analyzed driving constant improvements in both quality and cost.
Ordering Information
Cartridge order numbers have several variables from pore size to end cap type.
For instant, AP Grade PP Membrane, Absolute rate, 20 inch length, 0.20 micron rating, 226 w/fin end cap, without lining, Silicone O-rings.
Product Code =TZAPP200200CN1S
|
|
