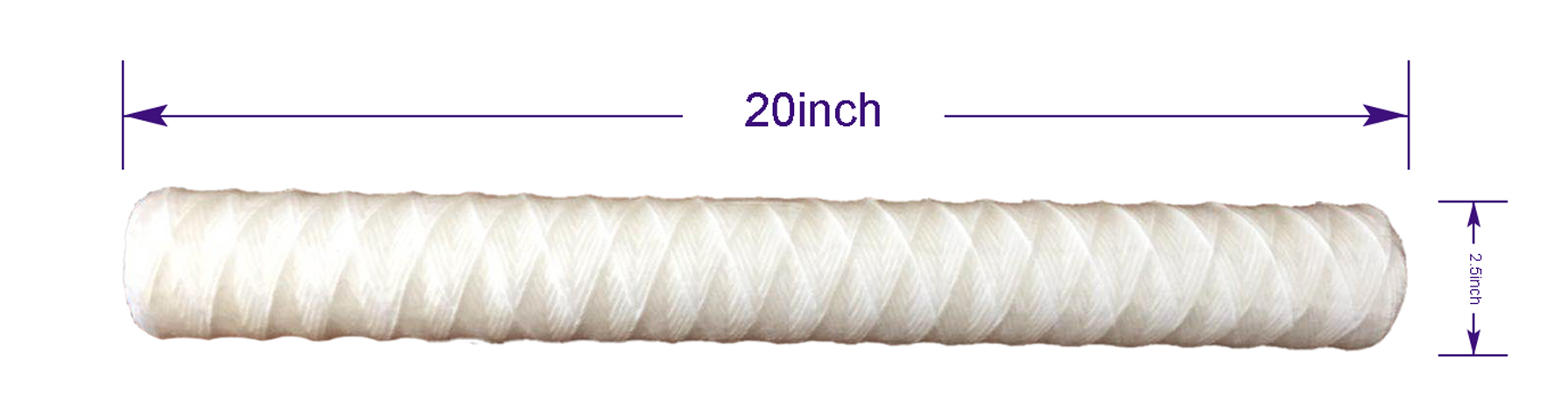

Standard 20 inch 5 micron PP thread string round filter for mineral water filtration
Description
String wound filter cartridge is belong to deep filtration elenments, mainly used in filtration of liquids with low viscosity and low temprature. With lower density at the surface and progressively higher density toward the center, the vast majority of suspended matters, partilces and rust can be removed from liquids.
Specification
| Item Name | 20 inch thread wound filter | |
| Material | Filtering Medial | PP |
| End Caps | DOE 222 226 | |
| Inner Core | PP | |
| Sealing Ring | Silicone, EMDM | |
| Size | Inlet & Outlet | 28 30 / 64±1mm |
| Length | 50.8mm (20inch) | |
| Pressure | Max. Working Pressure | 2.4Mpa at 25℃ |
| Working Pressure | 1.6Mpa at 25℃ | |
| Differential △ | 0.3Mpa | |
| Temprature | Max. Working Temp. | 80℃ |
| Working Temp. | 0-50℃ | |
Appication
1, Prefiltration of RO system and some other pure water being used
in beverage industry
2, Cooking oil, syrup, chololate filtration
3, Grease, heavy oil, cutting oil filtration
Features & Benefits
1, High mechanical strength, without distortion happened even in
extremly harsh filtration environment
2, Easy to be installed into housing, without leaking.
3, Extrem long (1778mm) deigned for condensate water filtration
4, Wild chemical compatibility: PH Value 1-13
|
|
