| Brand Name : | UPK |
| Model Number : | Bigblue melt blue 10 inch |
| Certification : | NSF |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, PAYPAL |
| Supply Ability : | 500000 PC PER MONTH |
| Delivery Time : | 20-30 day |

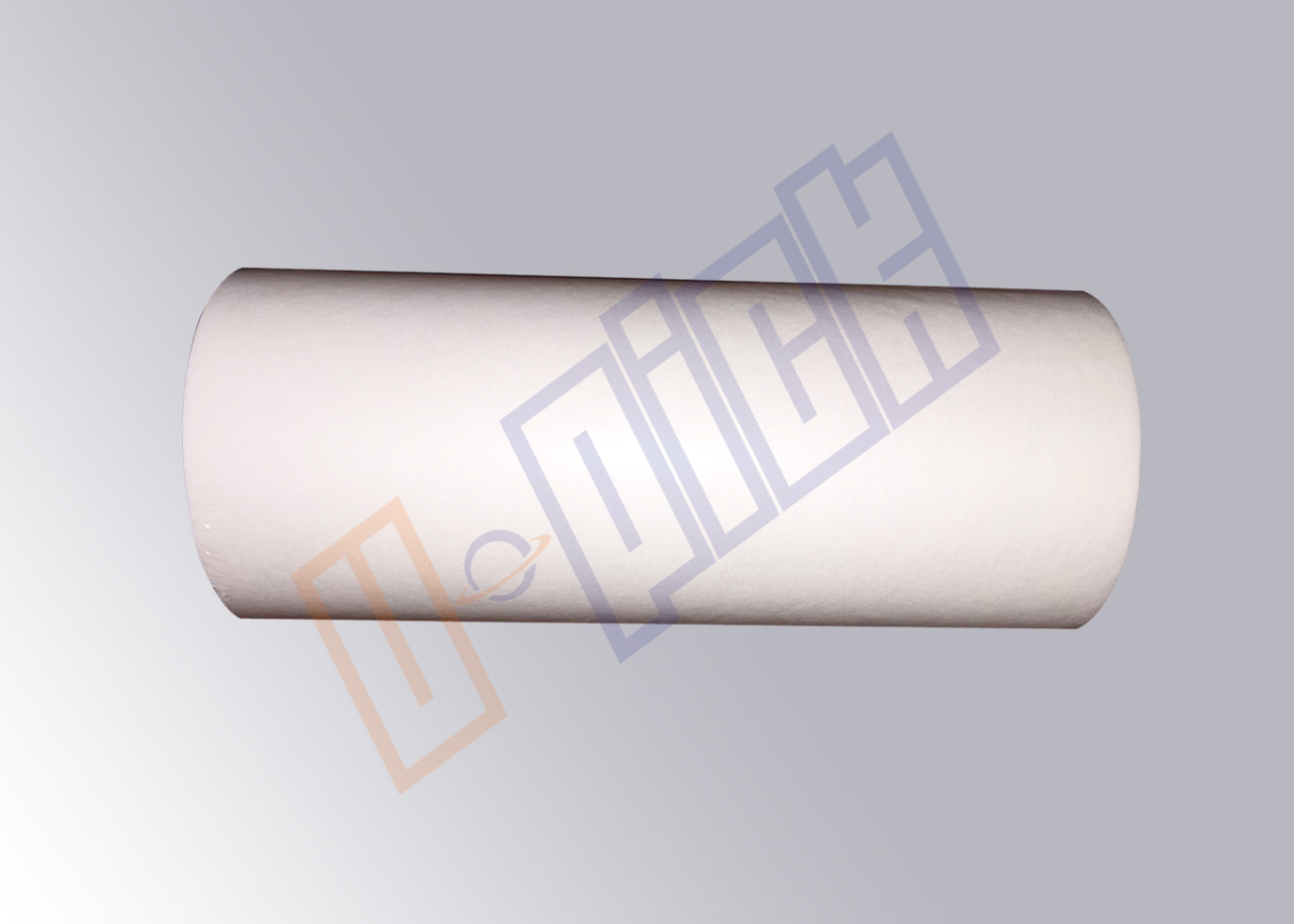

10 inch high flow pre-filtration PP melt blown filter cartridge
Description
It is for depth filtration with three layers from outside into inside, the cartridge with its high-dirty holding capacity, high flow rate and wide chemical resistance, it is used for reducing suspended substance, particles and rust in water filtration
Specification
| Item Name | 5 micron Bigblue PP Melt-blown | |
| Material | Filtering Medial | PP |
| End Caps | PP | |
| Inner Core | PP | |
| Sealing Ring | Silicone, EMDM | |
| Size | Inlet & Outlet | 28 30 / 108±1mm |
| Length | 10, 20, 30, 40inch | |
| Pressure | Max. Working Pressure | 2.2Mpa@25℃ |
| Working Pressure | 1.6Mpa@25℃ | |
| Differential △ | 0.4Mpa | |
| Temprature | Max. Working Temp. | 85℃ |
| Working Temp. | 0-70℃ | |
Application
Features & Benefits
|
|
