| Brand Name : | UPK |
| Model Number : | U018 |
| Certification : | SGS |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, Paypal |
| Supply Ability : | 2000 Pcs per month |
| Delivery Time : | 20-30 Days |
Industry pipeline dangling-mounted style 10 inch stainless steel filter housing
Specification
Table 1, Surface Treatment
| Polishing Type | Physical / Electro |
| Polishing Rating | I-0.4μm / O-0.6μm |
Table 2, Operational Environment
| Pressure | 0.6Mpa (6bar) |
| Max Temp. | 130℃ (266℉) |
| Sterilization | 121℃/30Min. |
Table 3, Material
| Housing | 304, 316L |
| Vent/Drain Valve | 304, 316L |
| Tri-Clasp | 304 |
| Drain | 304 316L |
| O-ring/Gasket | Silicone, Viton, EPDM, PTFE |
Table 4, Connection
| Cylinder | Flange, Quick coupler |
| Inlet/outlet | 3/4” FNPT |
| Drain | 1/2” NPT |
Feature & Benefits
1, Being connected with pipe directly
2, Without leaking when change-outs
3, Drain valve on the bottom
4, Absolutely Safe sealing design

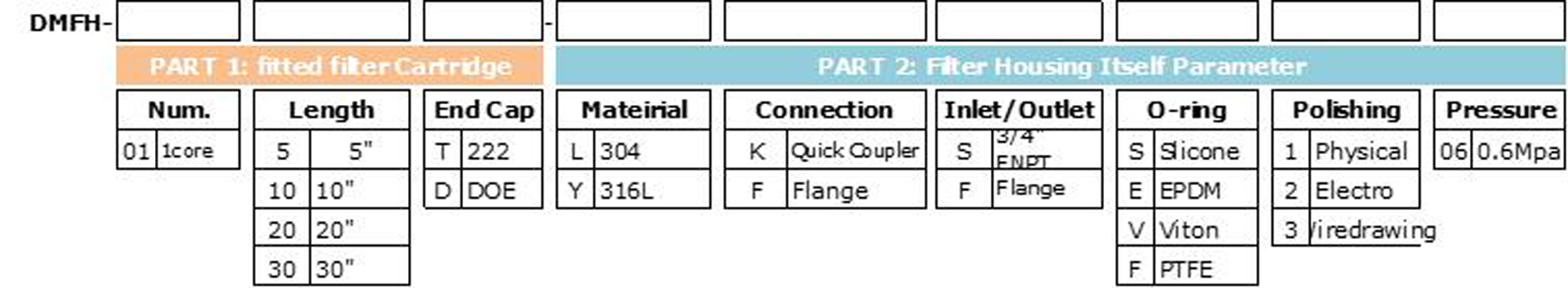

Ordering Information
|
|
