Filtration Equipments Online Market
8 Years
| Ask Lasest Price | |
| Brand Name : | Upick |
| Model Number : | U-ZD006 |
| Certification : | FDA |
| Price : | Negotiation |
| Payment Terms : | LC TT PAYPAL |
| Supply Ability : | 120000 PCS per Month |
| Delivery Time : | 15-20 Workdays |

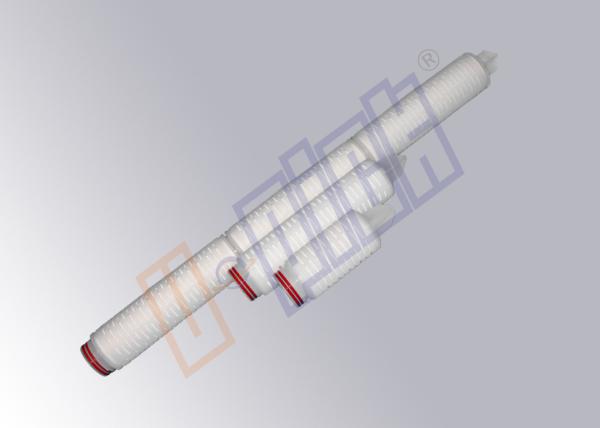

0.2 micron Nylon 6 membrane pleated filter cartridge for wine filtration
Description
TON6 Membrane Filter Cartridges are designed for sterilizing filtration, all nylon membrane used in the cartridges is selected for retention. Nylon is particularly suited for the filtration of solvents because of its broad compatibility and low level of extractable.
Constructional Materials
| Filtering Media | Nylon6 Membrane |
| Media Support | Polypropylene |
| End Caps | Polypropylene |
| Center Core | Polypropylene |
| Support Cage | PP or PP with SS lining |
| Sealing Method | Ultra-sonic Welding |
| O-Ring | Silicone, EPDM, Viton, FPM, Nitrile, etc. |
Dimensions
| Internal φ | 32 mm |
| External φ | 68 mm, 69 mm |
| Length | 2.5~40 inch |
| Filtration Area | >=0.65 m2 |
Service Condions
| PH Value | 6~13 |
| Working Temp. | <=65℃ |
| Max. Temp. | 90℃, △P<=0.1Mpa |
| Max. Differential | 25℃, 0.42/0.21Mpa |
Flow Rate / 10" Element with Water at 68 °F (20 °C)
Educt
Endotoxin < 0.25EU/ML
Extractive < 0.03g/10 inch filter cartridge
Applications
|
|
|
|
|
|
USP Biosafety & FDA Compliance
All the materials of the filter is non-toxic and meet the requirements for Biological Reactivity Tests in USP for Class VI – 121℃ Plastics. In addition, the materials meet the requirements listed by the FDA as appropriate for use in articles intended for repeated food contact as specified in Title 21 CFR section. The levels of bacterial endotoxins in aqueous extracts from the filters are below current USP limits as specified for WFI.

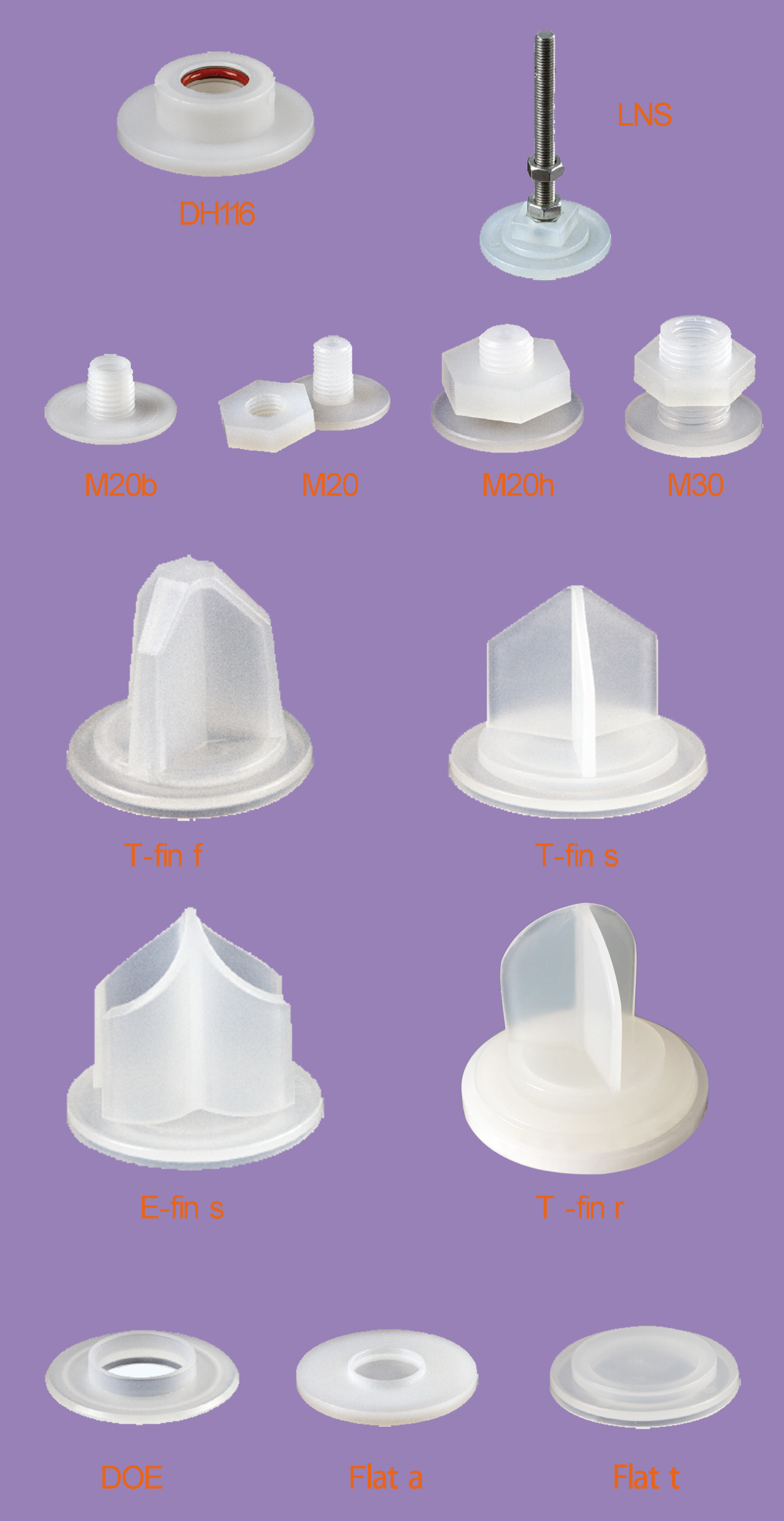

End Caps
Quality Assurance & Standards
Our goal is to ensure our customers the greatest possible value for their filtration cost. Our state of the art manufacturing facility and quality management system both meet ISO 9001:2008 standards. Each operation from assembly and test to cleaning, drying, and packaging is completed in appropriately rated clean rooms. A sophisticated MRP & ERP system collects and processes real time data from manufacturing centers and inspection points. This allows variable and attribute data to be quickly and easily analyzed driving constant improvements in both quality and cost.
Ordering Information
Cartridge order numbers have several variables from pore size to end cap type.
For instant, Nylon6 Membrane, 20 inch length, 0.20 micron rating, 226 w/fin end cap, without lining, Silicone O-rings.
Product Code =TON6200200CN1S
|
|
