0.45 micron PVDF hydrophilic membrane pleated filter cartridge
Description
TOPI series filter cartridges are made from hydrophilic PVDF membrane. The high quality membrane imported from aboard is with excellent retention rate, large flow rates and low protein binding. TOPI cartridges are used for critical applications in the biopharmaceutical production with a wide range.
Application fields include bio-burden reduction in buffers and media, WFI, solvents, alcohols and other liquids. It provides high efficiency, verifiable performance while protecting sterilizing grade filters.
Constructional Materials
| Filtering Media | PVDF Membrane (Hydrophilic) |
| Media Support | Polypropylene |
| End Caps | Polypropylene |
| Center Core | Polypropylene |
| Support Cage | PP or PP with SS lining |
| O-Ring | Silicone, EPDM, Viton, FPM, Nitrile, etc. |
Dimensions
| Internal φ | 32 mm |
| External φ | 68 mm, 69 mm |
| Length | 2.5~40 inch |
| Filtration Area | >=0.65 m2 |
Service Condions
| PH Value | 6~13 |
| Working Temp. | <=65℃ |
| Max. Temp. | 90℃, △P<=0.1Mpa |
| Max. Differential | 25℃, 0.42/0.21Mpa |
Flow Rate / 10" Element with Water at 68 °F (20 °C)
Educt
Endotoxin < 0.25EU/ML
Extractive < 0.03g/10 inch filter cartridge
Applications
|
|
|
|
|
|
Min. Bubble Point (10inch, 60% isopropyl alcohol wetted, 25℃)
| Pore Size | 0.20μm | 0.45μm | 0.80μm |
| Bubble Point | >=0.06Mpa | >=0.035Mpa | >=0.02Mpa |

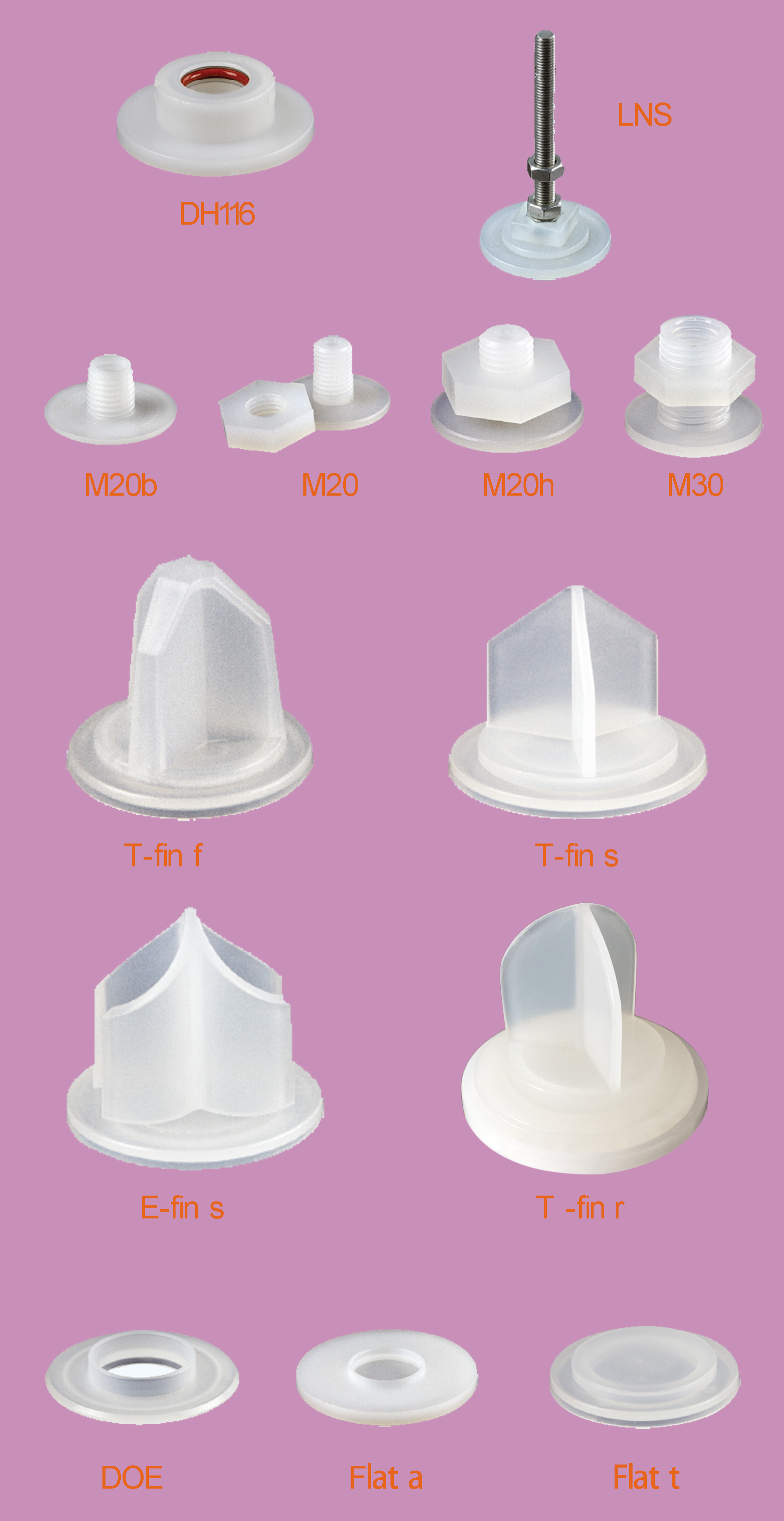

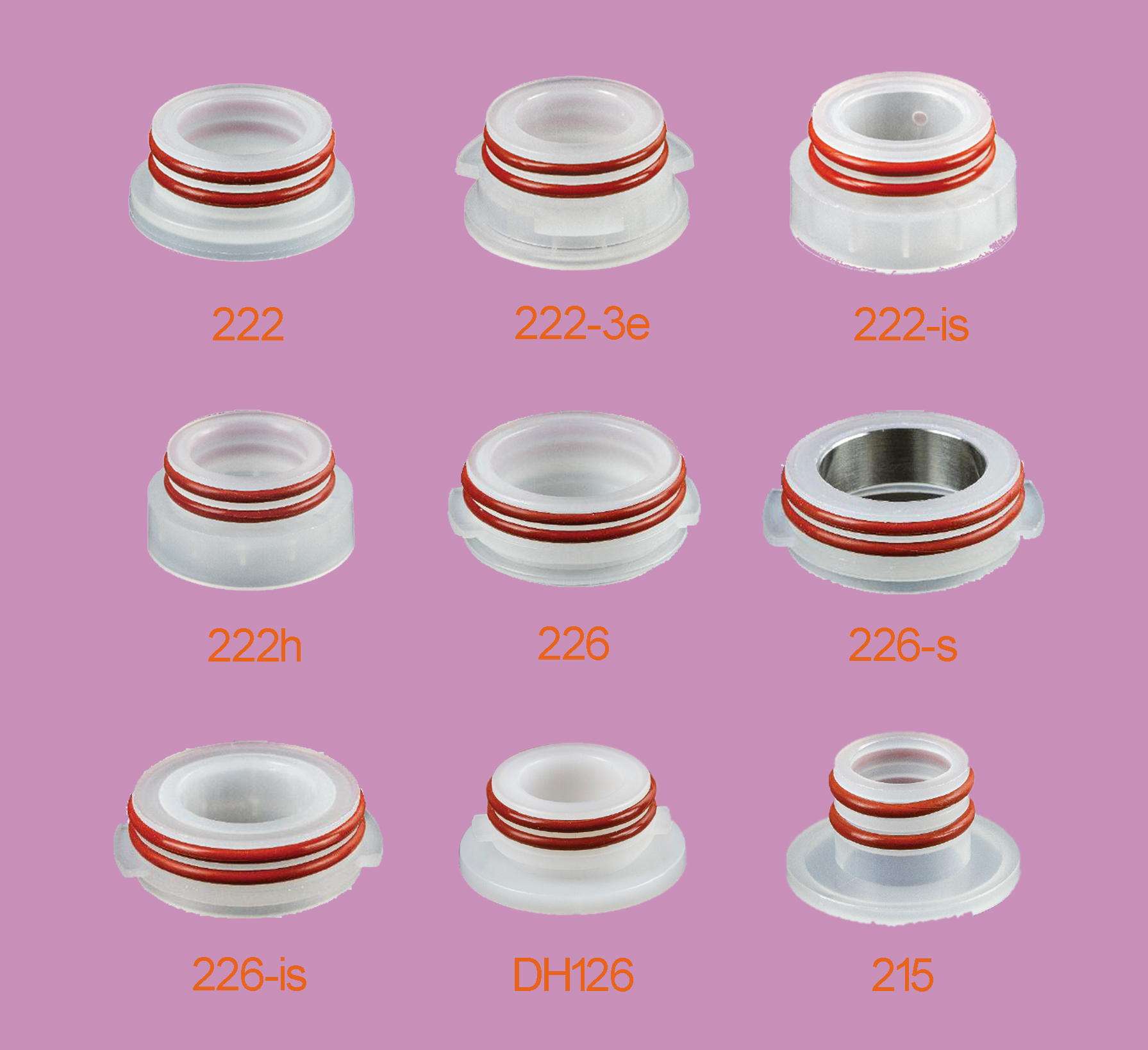

End Caps
Quality Assurance & Standards
Our goal is to ensure our customers the greatest possible value for their filtration cost. Our state of the art manufacturing facility and quality management system both meet ISO 9001:2008 standards. Each operation from assembly and test to cleaning, drying, and packaging is completed in appropriately rated clean rooms. A sophisticated MRP & ERP system collects and processes real time data from manufacturing centers and inspection points. This allows variable and attribute data to be quickly and easily analyzed driving constant improvements in both quality and cost.
Ordering Information
Cartridge order numbers have several variables from pore size to end cap type.
For instant, Hydrophilic PVDF Membrane, 20 inch length, 0.20 micron rating, 226 w/fin end cap, without lining, Silicone O-rings.
Product Code =TOPI200200CN1S
|
|
