Filtration Equipments Online Market
8 Years
| Ask Lasest Price | |
| Brand Name : | Upick |
| Model Number : | U-ZD010 |
| Certification : | FDA |
| Price : | Negotiation |
| Payment Terms : | LC TT PAYPAL |
| Supply Ability : | 120000 PCS per Month |
| Delivery Time : | 15-20 Workdays |

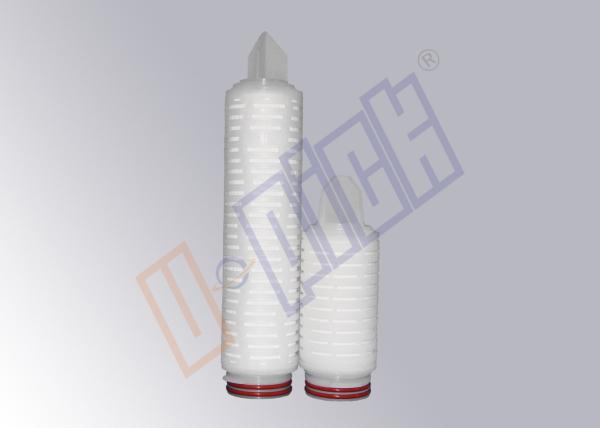

Food grade polypropylene membrane pleated filter cartridge for beverage industry
Description
TZFP series Membrane Filter Cartridge are manufactured for the specific needs of the Food and beverage industry. Each cartridge module is individually diffusion tested before it is released from manufacture. The cartridge surface area, filter core design, pleat configuration, and pleat packing density have been optimized to provide increased cartridge life resulting in lower filtration operating costs. Stable construction ensures repeatable steaming and testing.
Constructional Materials
| Filtering Media | PP Membrane |
| Media Support | Polypropylene |
| End Caps | Polypropylene |
| Center Core | Polypropylene |
| Support Cage | PP or PP with SS lining |
| O-Ring | Silicone, EPDM, Viton, FPM, Nitrile, etc. |
Dimensions
| Internal φ | 32 mm |
| External φ | 68 mm, 69 mm |
| Length | 2.5~40 inch |
| Filtration Area | >=0.65 m2 |
Service Condions
| PH Value | 1~14 |
| Working Temp. | <=55℃ |
| Max. Temp. | 80℃, △P<=0.1Mpa |
| Max. Differential | 25℃, 0.42/0.21Mpa |
Flow Rate / 10" Element with Water at 68 °F (20 °C)
Educt
Endotoxin < 0.25EU/ML
Extractive < 0.03g/10 inch filter cartridge
Applications
|
|
|
|
|
|

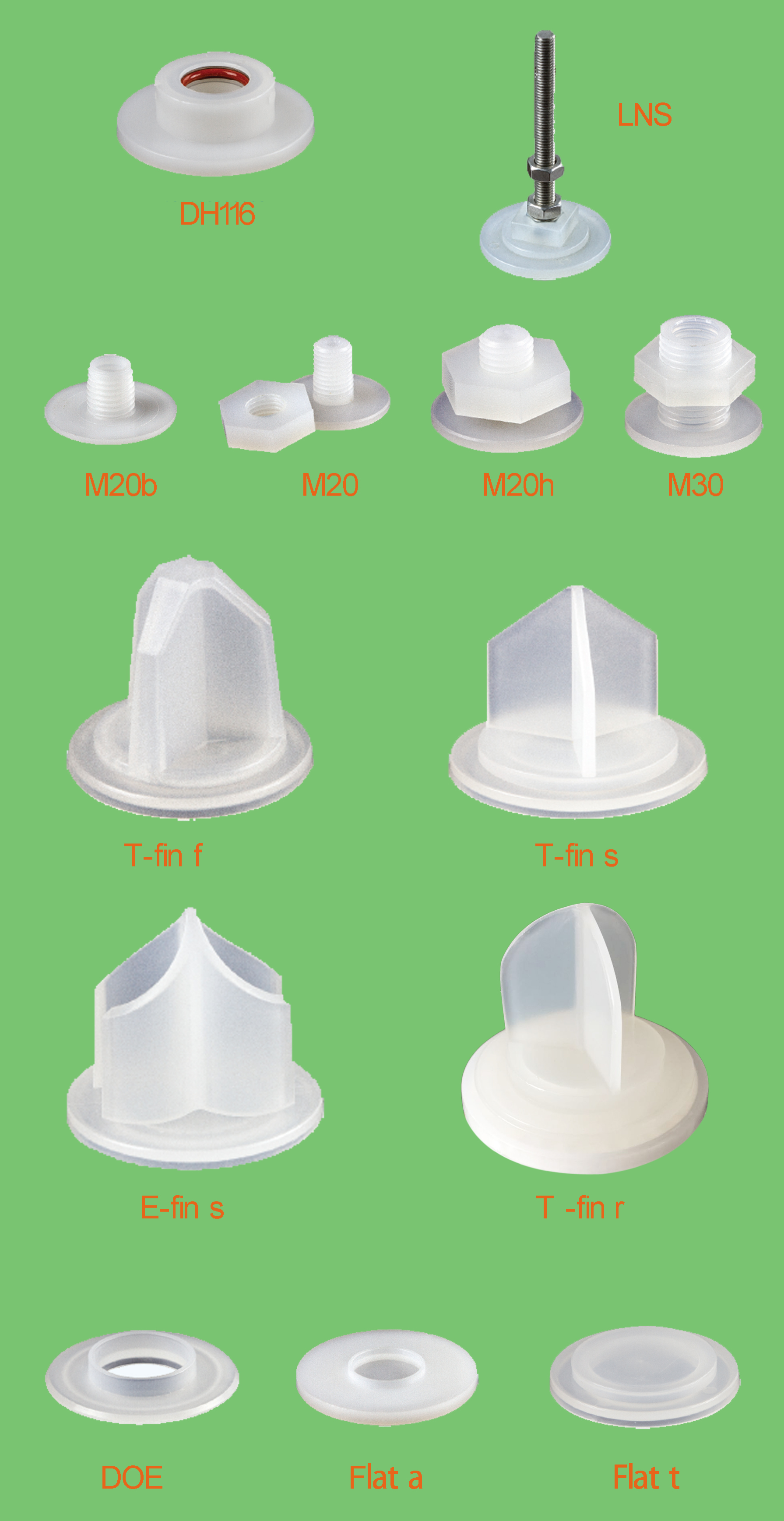

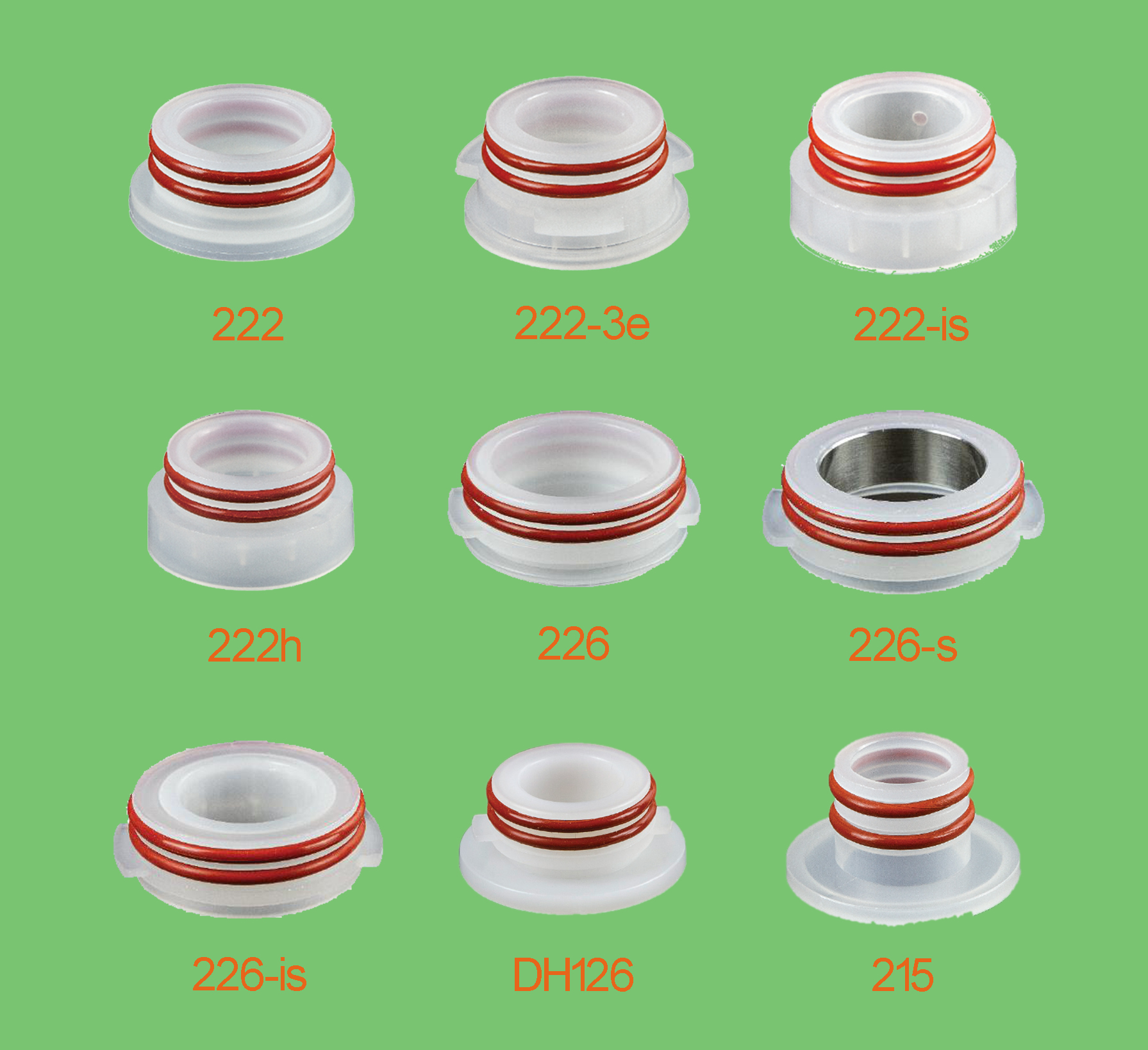

End Caps
Quality Assurance & Standards
Our goal is to ensure our customers the greatest possible value for their filtration cost. Our state of the art manufacturing facility and quality management system both meet ISO 9001:2008 standards. Each operation from assembly and test to cleaning, drying, and packaging is completed in appropriately rated clean rooms. A sophisticated MRP & ERP system collects and processes real time data from manufacturing centers and inspection points. This allows variable and attribute data to be quickly and easily analyzed driving constant improvements in both quality and cost.
Ordering Information
Cartridge order numbers have several variables from pore size to end cap type.
For instant, Food Grade PP Membrane, 20 inch length, 0.20 micron rating, 226 w/fin end cap, without lining, Silicone O-rings.
Product Code =TZFP200200CN1S
|
|
