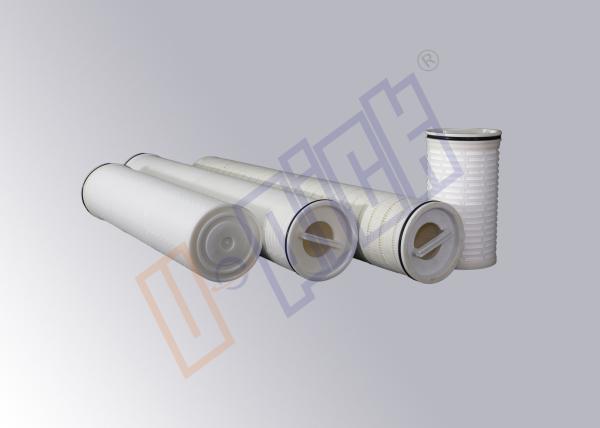

5 micron 40 inch PP high flow filter cartridge for water factory
Description
The UPK high flow filter cartridges are unique pleated geometry,they are large-diameter, coreless, single open-ended,pleated cartridge with an inside-to-outside flow pattern. It is designed for high flow filtration.Benefit from filters high flow and dirt holding capacity, smaller systems are possible, the upfront capital costs would be reduced.
Specification
| Filter media | PP microfiber | |
| Retention rating | 1,5,10,15,20,40,70,100μm | |
| Dimension | Outer diameter | 6"(152mm) |
| Inner diameter | 3.5"(8mm) | |
| Length | 20",40",60" | |
| Max.Operating temperature | Glass fibers membrane | 121℃ |
| PP membrane | 82℃ | |
| Max. Operating pressure | 0.34MPa@121℃ | |
| 0.34MPa@82℃ | ||
Recommended replace differential pressure: | 0.12MPa@20℃ | |
| Surface area | 24 ft2. (2.2 m2) per 20" element | |
| 49 ft2. (4.6 m2) per 40" element | ||
| 73 ft2. (6.8 m2) per 60" element | ||
| Maximum flow rates | 20"element up to 40 m3/hr | |
| 40"element up to 70 m3/hr | ||
| 60"element up to 70 m3/hr | ||
Application
Benefits and Features
|
|
