| Brand Name : | UPK |
| Model Number : | U-YT002 |
| Certification : | ISO |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, PAYPAL |
| Supply Ability : | 20000 PCS PER MONTH |
| Delivery Time : | 20-30DAYS |

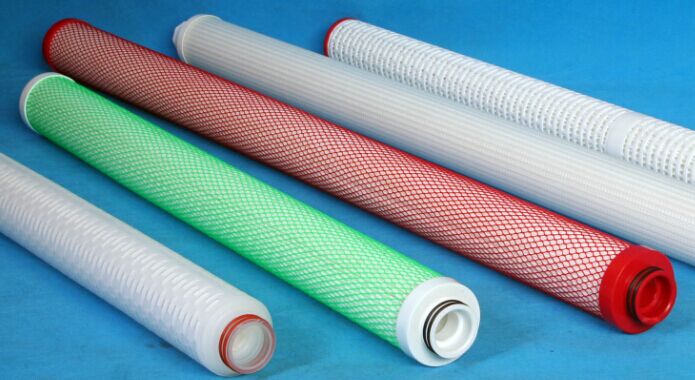

Soft net 40 inch PET oil filed filter cartridge for oil production use
Description
U-YT series pleated filter cartridge (soft net) is applied in various industries. We provide various material, length, pore size for more selections in different industries. The filter cartridge including 3 layers of media makes it with merit of coarse and deep filtration, while it is with low differential, high-dirt capacity, which makes it is unnecessary to change it frequently in using.
Specification
| Part. No. | U-YT002 | |
| Part Size | OD | φ64mm 66mm 69mm |
| ID | φ28mm | |
| Length | 30, 40inch | |
| Material | Media | PP PET Glass Fiber |
| End Cap | PP / 222 ABS | |
| Inner Core | PP ABS | |
| Net | PE | |
| Sealing Ring | Silicone, EPDM, NBR, Viton | |
| Gasket | NBR, EPDM, Silicone | |
| Performance | Max. Temperature | 25℃ 52℃ |
| Max. Work Pressure | 4Bar 2.5Bar | |
| Max. Differential | 5bar 20℃ 3bar 65℃ | |
| Filtration Efficiency | 99.98% GF | |
Application
1, Oil Production
2, Chemical Industry
3, Mining
4, Process Water Treatment
Features & Benefits
1, High filtration efficiency, long service life
2, High contamination capacity
3, Less change-outs, low cost
