    Compact Small Capsule Filters For Digital Printing System Replace PALL SCF

    Ask Lasest Price
    Brand Name : UPK
    Model Number : SCF Filter
    Certification : UL
    Price : Negotiation
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 200000 EA Per Month
    Delivery Time : 7-15 Days
    • Product Details
    • Company Profile

    Compact Small Capsule Filters For Digital Printing System Replace PALL SCF

    Compact small capsule filters for digital printing system to replace PALL SCF


    Description


    This self-contained filter assembly designed for the requirement of OEM equipments where ultra-fine filtration and low hold-up volumes are impoortant, with its pleated filter constructure inside to increase service life and assure its low initial pressure drop, it is suitable for application situations where space is limited. In addition to the standard white one, an opaque UV resistant capsule filter is also available.

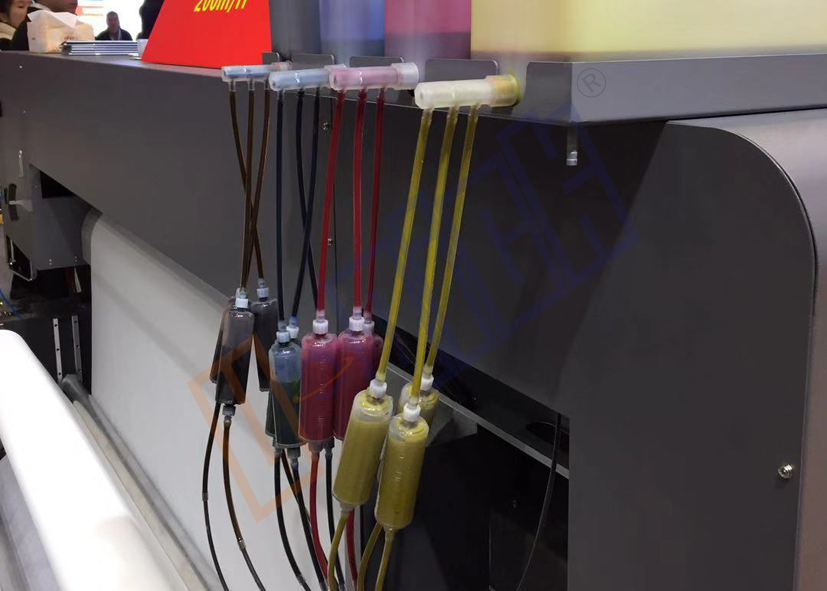

    Application


    Digital Pringting System


    Speficication


    Filter MadiaMelt-blown PP
    ShellPP
    Core, Cage and EndcapsPP
    Max. Operating Pressure60 psig @ 30-120℉ 4 barg @ 0-50 ℃
    Max. Differential Pressure40 psid 2.75bard

    Features & Benefits

    1. It is absolute-rated capsule filters for jet ink filtration on digital printing systems.
    2. Without any binders, adhesives or mold release agents employed in the manufacture of the product.
    3. Except PP media, other media options are also on your request.
    4. The connections of inlet and outlet are standard female luer lock connectors.

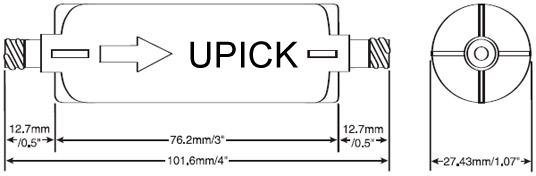

    Product Size

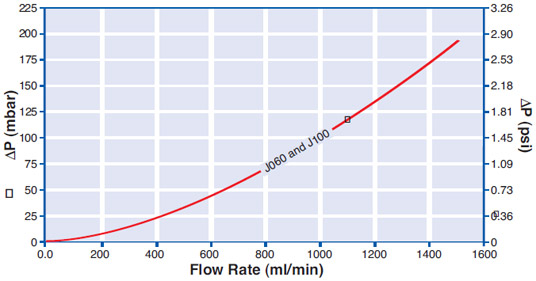

    Performance





    Quality Compact Small Capsule Filters For Digital Printing System Replace PALL SCF for sale
